Paint Spraying Products ->DP-6825 professional airless paint sprayer

DP-6825 diaphragm pump & airless spray gun set, belt-drive, for professional user.

 1.5hp airless painting pump airless painting sprayer equipment,belt-driven,high pressure 250bar

* Voltage / Frequency:220-240V / 50Hz, 220v/60hz, or 110V / 60Hz
* Induction Motor for this paint sprayer equipment: 1.5HP 1100w
* Pressure adjustabel from 0 to Max 250bar / 3650psi
* Airless painting Nozzle size: 0.013”, 0.015", 0.017", 0.019", 0.021" (513,515,517,519, 521 airless tips)
* Max. airless tip size: 0.021" (521 airless tip)
* Paint Paint Spraying delivery volume: 2.5 L / min
* For Paint viscosity: medium viscosity, less than 120s
* Length of high pressure hose in the package:15M
* Maximum length of the hose: 60 meters
* Working pressure for hose:250bar
* Burst pressure for hose:800bar
* G.W.:33.5KGS; N.W.:31.5KGS
* Carton dimensions:51x33.5x56cm

* New designed belt-driven airless painting sprayer, for stronger power output, and more paint delivery, with longer lifetime, and lower noise.
* Low pulse for better spraying result
* Low maintenance cost.
* Attached with pressure gage for easy pressure adjusting
* Both portable hand carrying type, and cart type are available.
* Equipped with 1.5hp single-phase brushless induction motor, diaphragm pump, high-pressure spray gun with in-line filter, replaceable spray tip, 15M high pressure hose, wrench set, and other easily-broken spare parts for repairing.
* DP6825 airless painting sprayer is suitable for many kinds of colorant, varnish, lacker, Medium to high viscosity water-based latex paint,and some oil-based paints, primer, enamel, waterborne, colorant, stains, acrylic, emulsions, varnish, floor coating, and some anti-corrosive painting etc. For Medium to large size indoor / outdoor wall painting, decoration, construction, building, etc

diaphragm valves for DP6825

(Easily worn parts for DP6825 airless painting sprayer, from left to right is diaphragm, Inlet valve, Outlet valve, Prime spray valve, Pressure adjusting valve. All the valves are precised machined in stainless steel + carbide of tungsten material)

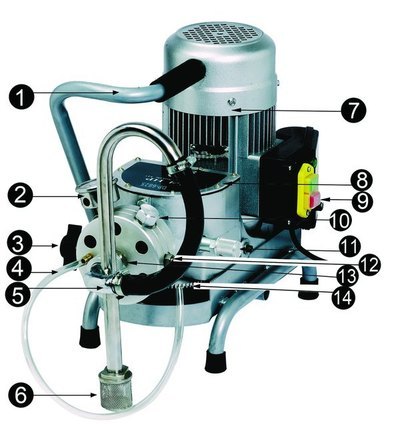

DP6825 parts

1. Handle 2. Pressure gage 3. Prime/Spray valve
4. Drain hose 5. Suction hose 6. Suction filter
7. Motor 8. Oil cover 9. On-off switch
10. Outlet valve 11. Pressure regulator 12. Paint Hose Connector
13. Inlet valve. 14. Belt

Download manual for DP6825 airless sprayer
