Paint Spraying Products ->DP-6818 portable paint sprayer

DP-6818 portable electric Airless Paint Sprayer / diaphragm pump kit

 portable 1hp airless paint sprayer

*Voltage/Frequency:220-240V/50Hz, 220v/60hz, or 110V/60Hz
*Motor for this paint sprayer equipment: 1HP  750W
*Max Pressure: 250bar/3650PSI
*Nozzle:0.013”, 0.015”, 0.017", 0.019 " (513,515,517, 519 airless tip)
*Max.tip size:0.019” (519 airless tip)
*Paint Spraying delivery volume:2.0L/min.
*For paint viscosity: low to medium. less than 110s
*Length of high pressure hose:15M
*G.W.:26.5KGS   N.W:24.5KGS
*Carton dimensions:45x43x61CM
*Light weight, portable airless sprayer for semi-Professional users.
*Simple design, and easy maintenance.
*The machine will always supply constant pressure without pulsation.
*Equipped with brushless induction motor , diaphragm Airless sprayer pump, high-pressure airless spray gun with in-line filter, replaceable spray tip, 15M high pressure hose, wrench set, and other easily-broken spare parts for repairing.
*This portable airless sprayer is suitable for many kinds of colorant, varnish, lacquer, latex paint, topcoats, latex, paints, water-based coatings, enamels, etc. for Medium to small area indoor / outdoor wall painting, building decoration, machinery, etc.

* The DP6818 airless sprayer kit could be used for both water-based , and oil-based paints.

diaphragm valves for DP6818

(Easily worn parts / Repair kit for DP6818, from left to right is diaphragm, Inlet valve, Outlet valve, Prime spray valve, Pressure adjusting valve. All the valves are precised machined in stainless steel + carbine tungsten material)

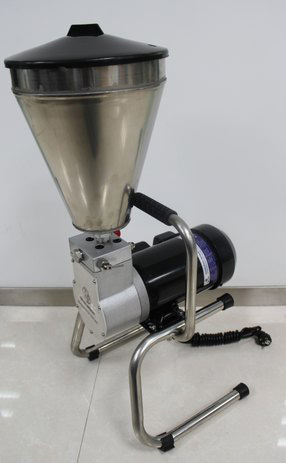

airless sprayer with gravity tank

DP6818 with 5L stainless steel gravity tank

Download manual for DP6818 sprayer system

airless sprayer automatically stop
airless paint sprayer kit
air less paint equipment belt-driven
wagner airless sprayer painting system
airless paint sprayer home depot
professional airless sprayer graco 495 model

Related Products:
1hp 750w DIAPHRAGM type painting sprayer with trolley / cart, 2.0L/min max.250bar max.0.019" tip DP6820
1.5hp 1.1kw DIAPHRAGM type high quality airless paint sprayers, 2.5L/min max.250bar max.0.021" tip DP6825 (both hand-carrying, and trolley type are available)
2.0hp 1.5kw DIAPHRAGM type industrial paint sprayers in Wagner model, 3.5L/min max.250bar max.0.029" tip DP6835 (both suction feed, and gravity feed are available), designed for 2 airlessguns spraying
1.8hp 1300w PISTON type air less painting equipment 2.2L/min max.210bar 3050psi max.0.021" tip DP6385B (hi-boy, trolley, cart type)
