Paint Spraying Products ->DP-6820 airless paint sprayer system

DP-6820 airless diaphragm pump & airless paint spray gun set

DP-6820B airless paint sprayer diaphragm pump (Stop working automatically when reach max. pressure )

 1hp airless painting pump airless sprayer Campbell type

* Voltage / Frequency:220-240V / 50Hz, 220v/60hz, or 110V / 60Hz
* Motor for this paint sprayer equipment: 1HP 750w
* Max pressure: 250bar / 3650psi
* Nozzle size: 0.013”, 0.015", 0.017", 0.019" (513,515,517,519 airless tip)
* Max. airless tip size: 0.019" (519 airless tip)
* Paint Spraying delivery volume: 2.0 L / min
* For Paint viscosity: small to medium viscosity, less than 110s
* Length of high pressure hose in the package:15M
* Maximum length of the hose: 30 meters
* Working pressure for hose:250bar
* Burst pressure for hose:800bar
* G.W.:29KGS; N.W.:27KGS
* Carton dimensions:48.5x48.5x63cm

* Cart type airless paint sprayer system , but stronger power, and higher pressure for professional users.
* Low noise, Low pulse, and low maintenance cost.
* Equipped with 1hp single-phase brushless induction motor, diaphragm pump, high-pressure spray gun with in-line filter, replaceable spray tip, 15M high pressure hose, and other easily-broken spare parts for repairing.
* This airless sprayer system is suitable for many kinds of colorant, varnish, lacker, Medium to high viscosity water-based latex paint, primer, enamel, waterborne, colorant, stains, acrylic, emulsions, varnish, etc. For Medium size indoor / outdoor wall painting, decoration, construction, etc

* The spray equipment can be used for both water-based and oil-based painting

diaphragm valves for DP6820

(Easily worn parts / Repair kit for DP6820 pump spray system, from left to right is diaphragm, Inlet valve, Outlet valve, Prime spray valve, Pressure adjusting valve) In Stainless steel + carbide tungsten material.

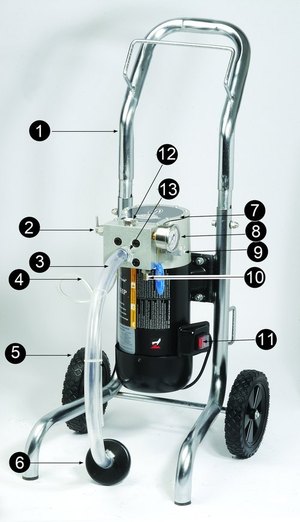

DP6820 parts

1. Cart 2. Prime/Spray valve 3. Suction hose (see below improved S.S tube)
4. Drain hose 5. Wheel 6. Suction filter
7. Oil cover 8. Pressure gage 9. Pressure regulator
10. Hose Connector 11. On-off switch 12. Outlet valve 13. Inlet valve.



screw in tube for suction paint wheel for the pump sprayer fine filter for siphone tube

A. New improved screw-in S.S. tube --- B. Nice wheels for easy moving. -- C. Double filter for fine filtering result



Download manual for DP6820 airless paint equipment
